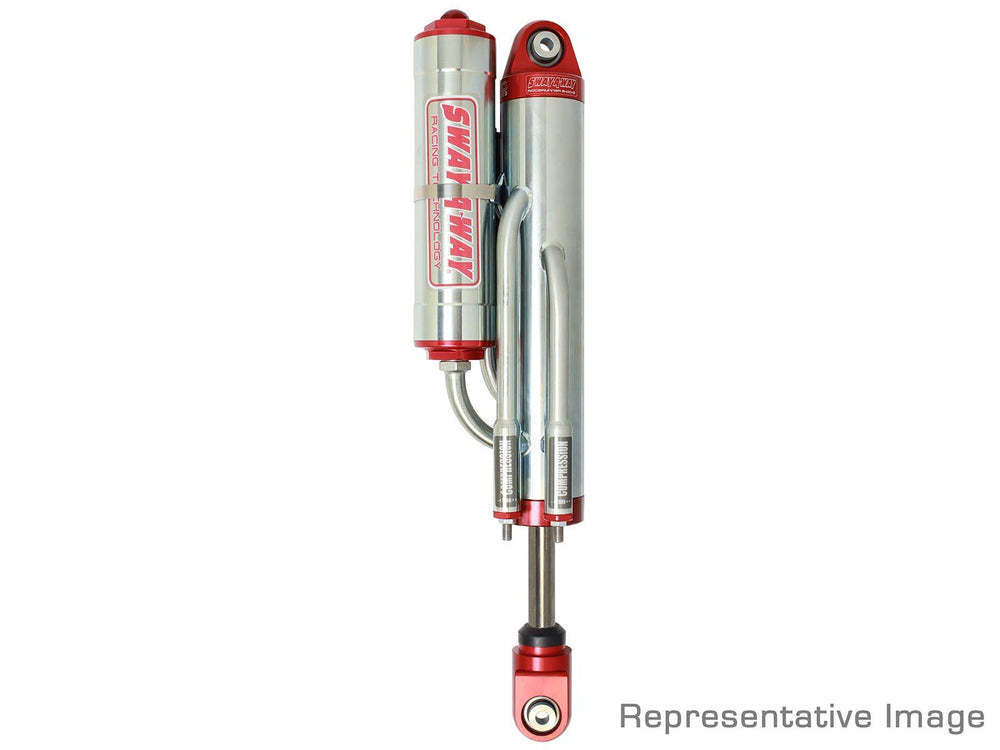

Sway-A-Way Bypass Shock 2.5" x 10" 3-Tube Piggyback Reservoir (Right Side)

Part Number	56000-0310-3R
Shock Type	Bypass Shocks
Shock Design	Piggyback
Extended Length (in)	26.40
Collapsed Length (in) (without 1/2" bump stop)	16.36
Shock Travel (without 1/2" bump stop)	10.04
Body Diameter (in)	2.625 IN (2-5/8")
Shock Body Material	ST52.3 Steel
Shock Body Finish	Nickel Flash + Zinc Plated
Body Color	Silver
Shaft Diameter (in)	0.875 IN (7/8")
Shaft Material	NitroSteel
Shaft Finish	NitroBrite Polished
Shaft Color	Black
Piston Material	7075-T6 Billet Aluminum
Piston Finish	Raw
Piston Color	Silver
Reservoir Diameter (in)	2.625 IN (2-5/8")
Reservoir Length (in)	5.875 IN (5-7/8")
Reservoir Material	ST52.3 Steel
Reservoir Finish	Nickel Flash + Zinc Plated
Reservoir Color	Silver
Hose Length (in)	N/A
Component Material	6061-T6 Billet Aluminum
Component Finish	Anodized
Component Color	Red
Upper Mount Type	EYE
Upper Mounting Bolt	0.5 IN (1/2")
Upper Mounting Width	1.25 IN (1-1/4")
Lower Mount Type	EYE
Lower Mounting Bolt	0.5 IN (1/2")
Lower Mounting Width	1.25 IN (1-1/4")
Bearing Size	COM 10T
Bushing Material	PTFE-Lined Chromoly Steel
Bushing Color	Natural Steel
Qty of Compression Tubes	2
Qty of Rebound Tubes	1
Compression Adjuster	No
Qty of Compression Adjustments	N/A
Internal Bump Stop	No
Gas Charged	Yes
Gas Pressure (psi)	200
Shock Oil (wt)	7
Oil Volume (L)
Rebuildable Shock	Yes
Seals	Viton O-Rings
Adjustable Valving	Yes
Hardware Included	No
Mounting Bracket Included	No
Quantity	Sold Individually
Note	Misalignment spacers are available in a wide range of sizes to fit your custom application.

Sway-A-Way 2.5 Bypass Shock 3-Tube w/ Piggyback Res. Right Side - 10 IN Stroke
