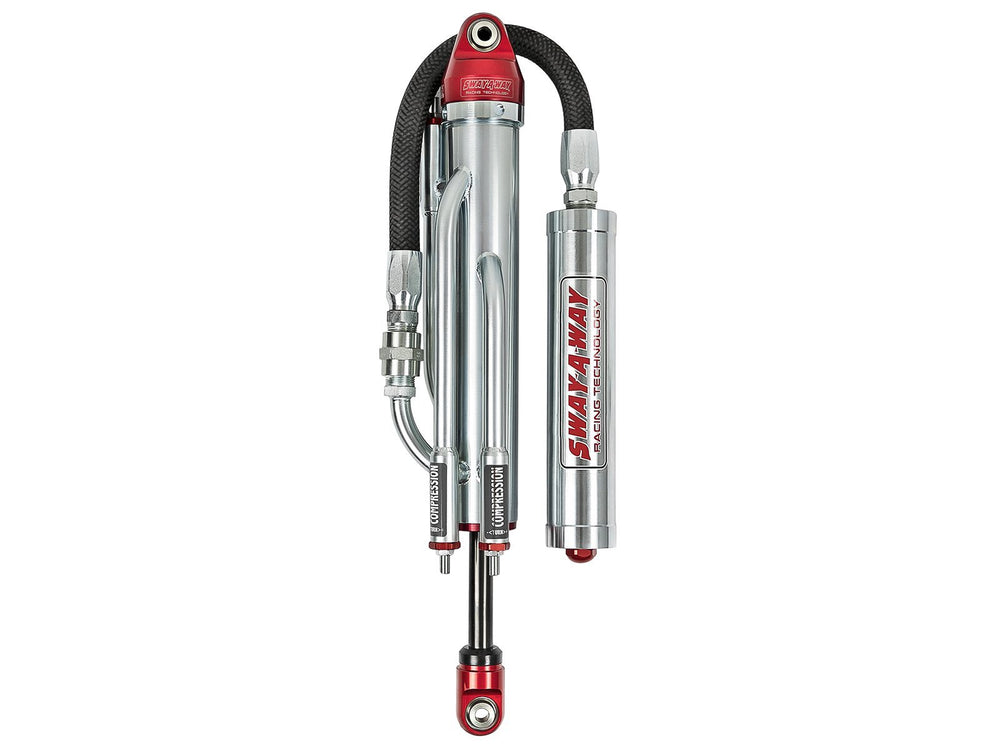

Sway-A-Way Bypass Shock 2.5" x 8" 3-Tube Remote Reservoir (Right Side) - 56000-0208-3R
Part Number |
56000-0208-3R |
Shock Type |
Bypass Shocks |
Shock Design |
Remote |
Extended Length (in) |
22.85 |
Collapsed Length (in) (without 1/2" bump stop) |
14.36 |
Shock Travel (without 1/2" bump stop) |
8.49 |
Body Diameter (in) |
2.625 IN (2-5/8") |
Shock Body Material |
ST52.3 Steel |
Shock Body Finish |
Nickel Flash + Zinc Plated |
Body Color |
Silver |
Shaft Diameter (in) |
0.875 IN (7/8") |
Shaft Material |
NitroSteel |
Shaft Finish |
NitroBrite Polished |
Shaft Color |
Black |
Piston Material |
7075-T6 Billet Aluminum |
Piston Finish |
Raw |
Piston Color |
Silver |
Reservoir Diameter (in) |
2.625 IN (2-5/8") |
Reservoir Length (in) |
9.00 IN (9") |
Reservoir Material |
ST52.3 Steel |
Reservoir Finish |
Nickel Flash + Zinc Plated |
Reservoir Color |
Silver |
Hose Length (in) |
18 IN |
Component Material |
6061-T6 Billet Aluminum |
Component Finish |
Anodized |
Component Color |
Red |
Upper Mount Type |
EYE |
Upper Mounting Bolt |
0.5 IN (1/2") |
Upper Mounting Width |
1.25 IN (1-1/4") |
Lower Mount Type |
EYE |
Lower Mounting Bolt |
0.5 IN (1/2") |
Lower Mounting Width |
1.25 IN (1-1/4") |
Bearing Size |
COM 10T |
Bushing Material |
PTFE-Lined Chromoly Steel |
Bushing Color |
Natural Steel |
Qty of Compression Tubes |
2 |
Qty of Rebound Tubes |
1 |
Compression Adjuster |
No |
Qty of Compression Adjustments |
N/A |
Internal Bump Stop |
No |
Gas Charged |
Yes |
Gas Pressure (psi) |
200 |
Shock Oil (wt) |
7 |
Oil Volume (L) |
|
Rebuildable Shock |
Yes |
Seals |
Viton O-Rings |
Adjustable Valving |
Yes |
Hardware Included |
No |
Mounting Bracket Included |
Yes |
Quantity |
Sold Individually |
Note |
Misalignment spacers are available in a wide range of sizes to fit your custom application. |
