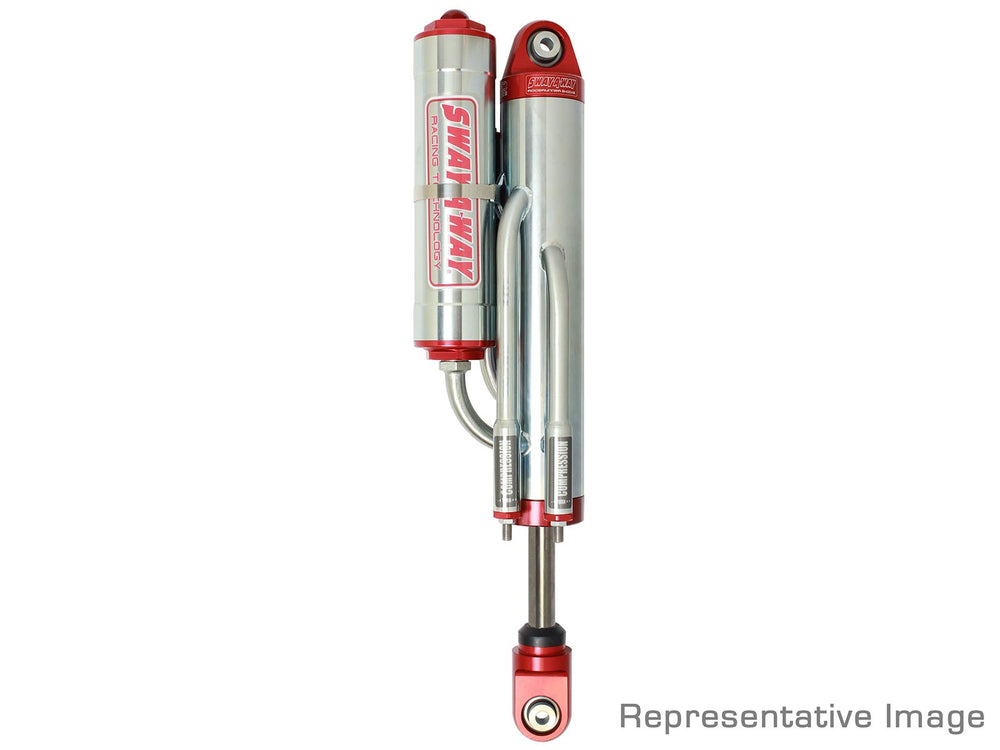

Sway-A-Way Bypass Shock 2.5" x 8" 3-Tube Piggyback Reservoir, Left Side
| Part Number |
56000-0308-3L |
| Type |
Bypass Shocks |
| Shock Design |
Piggyback |
| Extended Length (in) |
22.85 |
| Collapsed Length (in) (without 1/2" bump stop) |
14.36 |
| Shock Travel (without 1/2" bump stop) |
8.49 |
| Body Diameter (in) |
2.625 IN (2-5/8") |
| Shock Body Material |
ST52.3 Steel |
| Shock Body Finish |
Nickel Flash + Zinc Plated |
| Body Color |
Silver |
| Shaft Diameter (in) |
0.875 IN (7/8") |
| Shaft Material |
NitroSteel |
| Shaft Finish |
NitroBrite Polished |
| Shaft Color |
Black |
| Piston Material |
7075-T6 Billet Aluminum |
| Piston Finish |
Raw |
| Piston Color |
Silver |
| Reservoir Diameter (in) |
2.625 IN (2-5/8") |
| Reservoir Length (in) |
5.875 IN (5-7/8") |
| Reservoir Material |
ST52.3 Steel |
| Reservoir Finish |
Nickel Flash + Zinc Plated |
| Reservoir Color |
Silver |
| Hose Length (in) |
N/A |
| Component Material |
6061-T6 Billet Aluminum |
| Component Finish |
Anodized |
| Component Color |
Red |
| Upper Mount Type |
EYE |
| Upper Mounting Bolt |
0.5 IN (1/2") |
| Upper Mounting Width |
1.25 IN (1-1/4") |
| Lower Mount Type |
EYE |
| Lower Mounting Bolt |
0.5 IN (1/2") |
| Lower Mounting Width |
1.25 IN (1-1/4") |
| Bearing Size |
COM 10T |
| Bushing Material |
PTFE-Lined Chromoly Steel |
| Bushing Color |
Natural Steel |
| Qty of Compression Tubes |
2 |
| Qty of Rebound Tubes |
1 |
| Compression Adjuster |
No |
| Qty of Compression Adjustments |
N/A |
| Internal Bump Stop |
No |
| Gas Charged |
Yes |
| Gas Pressure (psi) |
200 |
| Shock Oil (wt) |
7 |
| Oil Volume (L) |
|
| Rebuildable Shock |
Yes |
| Seals |
Viton O-Rings |
| Adjustable Valving |
Yes |
| Hardware Included |
No |
| Mounting Bracket Included |
No |
| Quantity |
Sold Individually |
| Note |
Misalignment spacers are available in a wide range of sizes to fit your custom application. |
