$1,221.25
$1,025.85
Availability: 1 In Stock
Sku: 56000-0316-3L

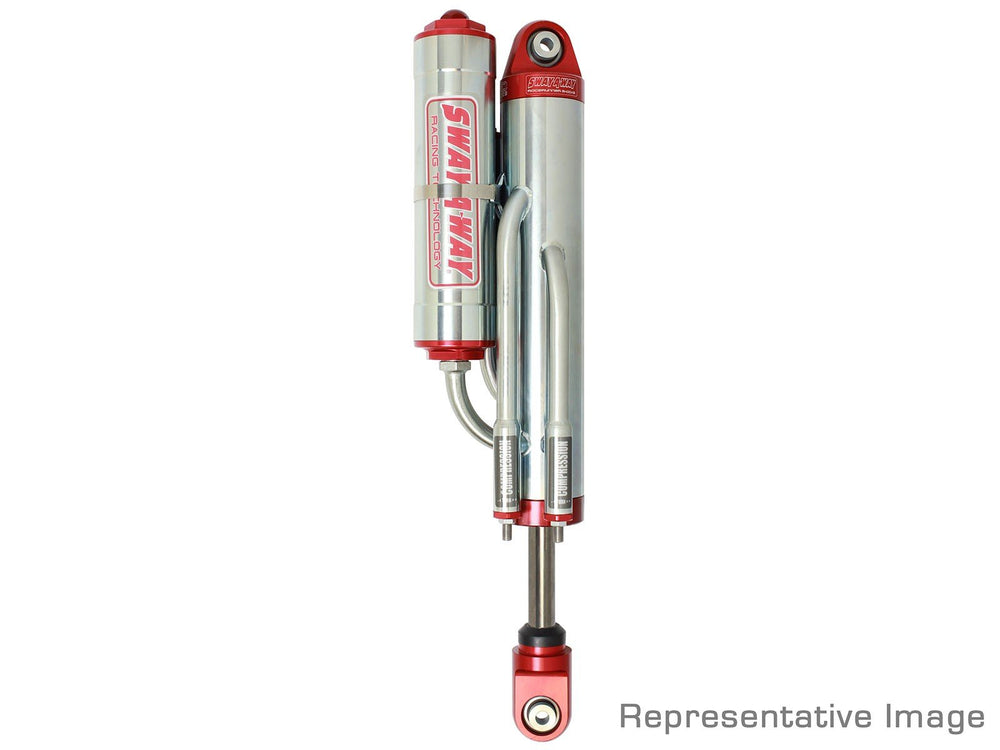

Sway-A-Way Bypass Shock 2.5" x 16" 3-Tube Piggyback Reservoir (Left Side)

Part Number 56000-0316-3L
Shock Type Bypass Shocks
Shock Design Piggyback
Extended Length (in) 40.56
Collapsed Length (in) (without 1/2" bump stop) 24.05
Shock Travel (without 1/2" bump stop) 16.52
Body Diameter (in) 2.625 IN (2-5/8")
Shock Body Material ST52.3 Steel
Shock Body Finish Nickel Flash + Zinc Plated
Body Color Silver
Shaft Diameter (in) 0.875 IN (7/8")
Shaft Material NitroSteel
Shaft Finish NitroBrite Polished
Shaft Color Black
Piston Material 7075-T6 Billet Aluminum
Piston Finish Raw
Piston Color Silver
Reservoir Diameter (in) 2.625 IN (2-5/8")
Reservoir Length (in) 11.75 IN (11-3/4")
Reservoir Material ST52.3 Steel
Reservoir Finish Nickel Flash + Zinc Plated
Reservoir Color Silver
Hose Length (in) N/A
Component Material 6061-T6 Billet Aluminum
Component Finish Anodized
Component Color Red
Upper Mount Type EYE
Upper Mounting Bolt 0.5 IN (1/2")
Upper Mounting Width 1.25 IN (1-1/4")
Lower Mount Type EYE
Lower Mounting Bolt 0.5 IN (1/2")
Lower Mounting Width 1.25 IN (1-1/4")
Bearing Size COM 10T
Bushing Material PTFE-Lined Chromoly Steel
Bushing Color Natural Steel
Qty of Compression Tubes 2
Qty of Rebound Tubes 1
Compression Adjuster No
Qty of Compression Adjustments N/A
Internal Bump Stop No
Gas Charged Yes
Gas Pressure (psi) 200
Shock Oil (wt) 7
Oil Volume (L)
Rebuildable Shock Yes
Seals Viton O-Rings
Adjustable Valving Yes
Hardware Included No
Mounting Bracket Included No
Quantity Sold Individually
Note Misalignment spacers are available in a wide range of sizes to fit your custom application.



Sway-A-Way 2.5 Bypass Shock 3-Tube w/ Piggyback Res. Left Side - 16 IN Stroke
