$640.00
$537.60
Availability: 1 In Stock
Sku: 56000-0412

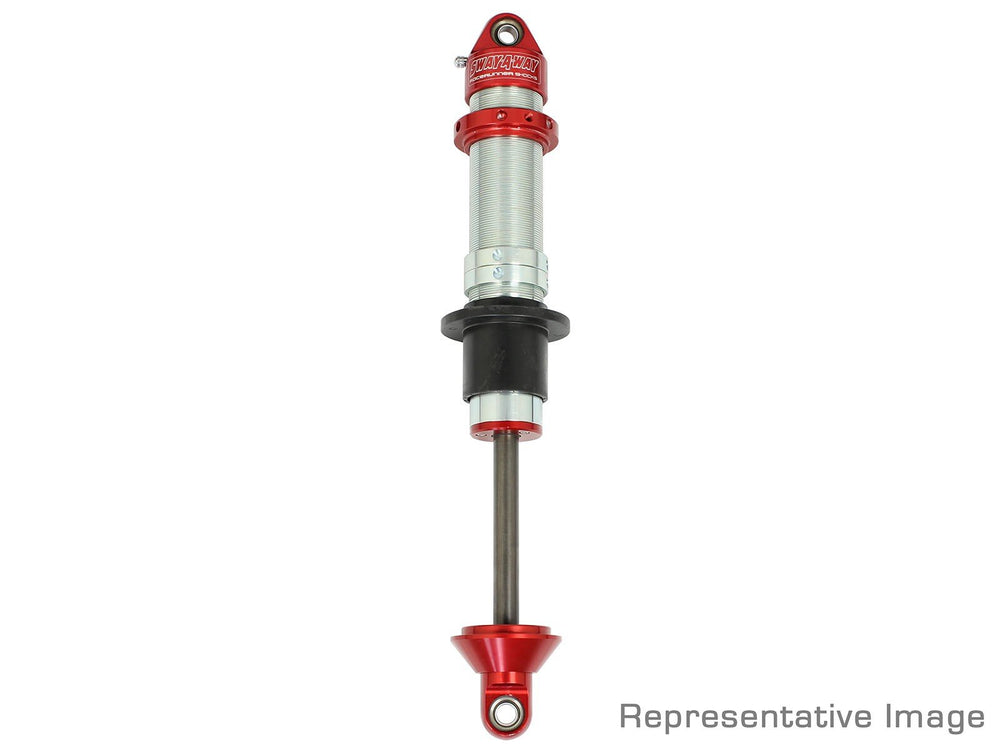

Sway-A-Way Coilover 2.5" x 12" Emulsion

Part Number 56000-0412
Shock Type Coilover
Shock Design Emulsion
Extended Length (in) 31.563 IN
Collapsed Length (in) 19.045 IN
Shock Travel 12 IN
Shock Body Material ST52.3 DOM TYPE 6 SSID
Shock Body Finish Nickel Flash + Zinc Plated
Rebuildable Shock Yes
Adjustable Valving Yes
Upper Mount Type Eyelet
Lower Mount Type Eyelet
Upper Mounting Bolt 0.5 IN
Lower Mounting Bolt 0.5 IN
Upper Mounting Width 1.25 IN
Lower Mounting Width 1.25 IN
Gas Charged Yes
Gas Pressure (psi) 200
Shock Oil (wt) 7
Body Diameter (in) 2.5 IN
Shaft Diameter (in) 0.875 IN (7/8")
Shaft Finish NitroBrite Polished
Shaft Color Black
Bushing Material Spherical bearing
Bushing Color PTFE-Lined Chromoly Steel
Coil over Springs Included Natural Steel
Primary Spring Color
Primary Spring Finish
Primary Spring Rate (lbs/in)
Primary Spring Length
Secondary Spring Color
Secondary Spring Finish
Secondary Spring Rate
Secondary Spring Length
Mounting Bracket Included No
Hardware Included No
Quantity 1
Internal Bump Stop No
Compression Adjuster No
Qty of Compression Adjustments
Upper Mounting Type EYE
Lower Mounting Type EYE
Upper Mounting Bolt Diameter .50 IN
Lower Mounting Bolt Diameter .50 IN
Upper Mounting Width 1.25 IN
Lower Mounting Width 1.25 IN
Note Misalignment spacers are available in a wide range of sizes to fit your custom application.

Sway-A-Way 2.5 Emulsion Shock w/ Threaded Body - 12 IN Stroke
