$1,362.50
$1,144.50
Availability: Out Of Stock
Sku: 50100-0116

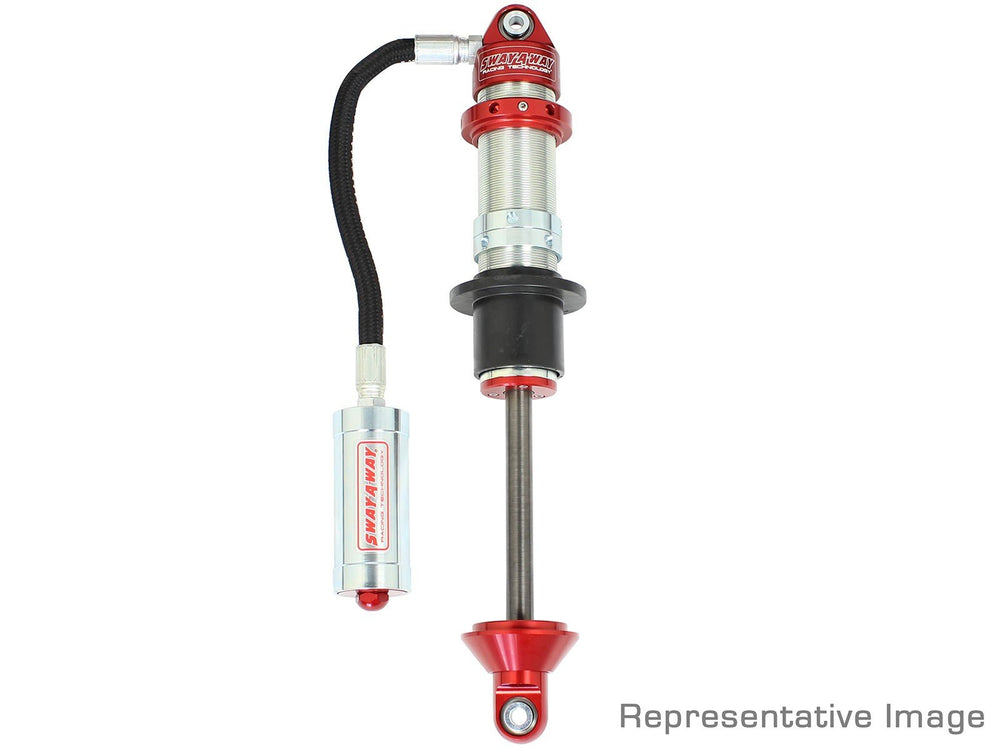

Sway-A-Way Coilover 3.0" x 16" Remote Reservoir

Part Number 50100-0116
Shock Type Coilover
Shock Design Remote
Extended Length (in) 43.494 IN
Collapsed Length (in) 27.459 IN
Shock Travel 16 IN
Shock Body Material 1026, 3.125X.188, Honed
Shock Body Finish Bright Cadmium
Rebuildable Shock Yes
Adjustable Valving Yes
Upper Mount Type Eyelet
Lower Mount Type Eyelet
Upper Mounting Bolt 0.5 IN
Lower Mounting Bolt 0.5 IN
Upper Mounting Width 1.25 IN
Lower Mounting Width 1.25 IN
Gas Charged Yes
Gas Pressure (psi) 200
Shock Oil (wt) 7
Body Diameter (in) 3 IN
Shaft Diameter (in) 1 IN
Shaft Finish NitroBrite Polished
Shaft Color Black
Bushing Material Spherical bearing
Bushing Color PTFE-Lined Chromoly Steel
Coil over Springs Included Natural Steel
Primary Spring Color
Primary Spring Finish
Primary Spring Rate (lbs/in)
Primary Spring Length
Secondary Spring Color
Secondary Spring Finish
Secondary Spring Rate
Secondary Spring Length
Mounting Bracket Included Yes
Hardware Included No
Quantity 1
Internal Bump Stop No
Compression Adjuster Yes
Qty of Compression Adjustments 16
Upper Mounting Type EYE
Lower Mounting Type EYE
Upper Mounting Bolt Diameter .50 IN
Lower Mounting Bolt Diameter .50 IN
Upper Mounting Width 1.25 IN
Lower Mounting Width 1.25 IN
Note Misalignment spacers are available in a wide range of sizes to fit your custom application.

Sway-A-Way Universal Race Coilover 3.0 x 16 Remote Reservoir w/ Hardware
